• AquaVision Intelligence

    Smart water quality monitoring that goes beyond Section 82 compliance

    water quality monitoring solution from EMR

What is AquaVision Intelligence?

AquaVision Intelligence is a platform developed by EMR to provide water utilities with a fully integrated Continuous Water Quality Monitoring capability, designed to go beyond compliance obligations imposed under S.82 of the Environment Act, 2021.

Built on best-of-breed technologies from leading manufacturers, AquaVision Intelligence provides near real-time monitoring of key water quality parameters together with comprehensive visualisation, reporting and alarm notification, and open interfaces to third party applications and systems on a secure, resilient Azure cloud.

Using edge-driven data, utilities can tap into crucial insights for command and control centres to react quicker to adverse events. Through data integration, utilities can also model future events through predictive analysis of edge data.

VIEW SERVICE SHEET

The Hardware Layer

AquaVision Intelligence water quality monitoring incorporates data logging and multi-network 4G/5G data transmission, with options for satellite where cellular coverage is inadequate. In the event of an interruption to communications, the logger continues to store readings which are then uploaded to the AquaVision Cloud on restoration of service.

The AquaVision Intelligence field hardware is housed in a weatherproof and vandal-resistant pedestal enclosure with all electronics 1.5m above a ground-level concrete plinth. This arrangement ensures that service personnel are working at a safe and comfortable height while protecting the equipment from flooding and external impacts.

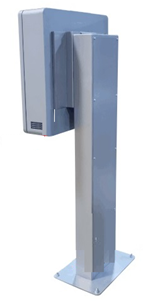

water quality monitoring probe

A water quality monitoring solution suitable for both pumped and in-river deployment and available in a number of form factors including kiosk, wall mount, pole mount and suitcase

VIEW SERVICE SHEET

AquaVision Intelligence Sonde

Measurement Parameters

  • Dissolved Oxygen
  • Temperature
  • pH
  • Turbidity
  • Ammonia
  • Conductivity

Technical Specification

  • Response Time: Less than 30 seconds
  • Operating Temperature: -5 to +50°C
  • Dissolved Oxygen (% saturation): 0 - 200%
  • Dissolved Oxygen (mg/l): 0 - 20 mg
  • Temperature: -5 to +50 °C
  • pH: 0 - 14 pH units
  • Turbidity: 0 - 3000 NTU
  • Ammonium: 0 - 5 mg/l
  • Conductivity: 0 - 50,000 µS/cm

Why AquaVision Intelligence?

Compliance

Ensure complete alignment with Section 82 Environment Act 2021 requirements

Reduced Risk

Reduce compliance risk through real-time monitoring and automated alerts

Operational Excellence

Automated, real-time intelligence gathering and a unified view of water operations

Better Decision-Making

Enable data-driven decision making with advanced analytics and machine learning

Reduced CapEX

Connectivity consolidation to one ISP using a pooled data plan on carrier agnostic LTE

Builds Trust

Build public trust through transparent water quality reporting

Integration Capability

The Ignition SCADA platform serves as the core integration engine, providing enterprise-grade data orchestration and visualisation capabilities. This platform architecture enables seamless unification of operational data streams through standardised protocols and robust APIs.  Data streams from sewer networks, waste water treatment plants, telemetry, GIS and even local or regional weather stations can be easily integrated into one holistic environmental system, providing a single source of truth and supporting your unified operations centre.

AquaVision Intelligence takes water quality monitoring to a whole new level.

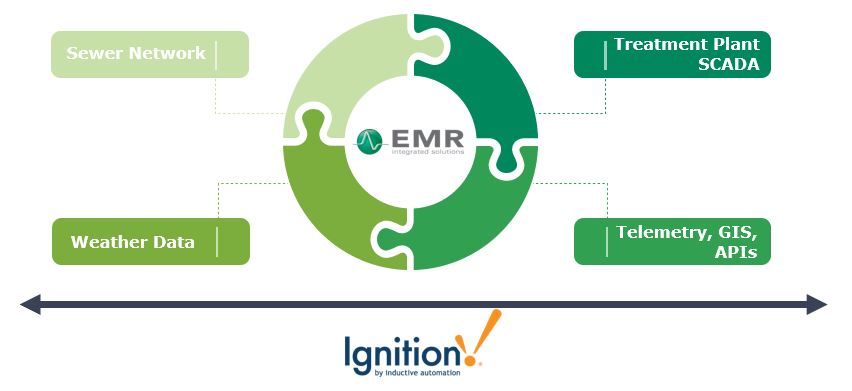

EMR's unified operations centre approach

Data Presentation

The nature, data type and manner of presentation is totally flexible and readily configurable to meet evolving requirements. Granular information will be presented through comprehensive alarm and event logs, and performance graphics.

Custom screens provide relevant information in a manner, which is appropriate to the audience and the individual user, with authorised users provided with a drag-and-drop screen-build option to facilitate the creation of screens for their specific areas of interest or preferences, while templates are created for commonly used screens.

Monitoring and Reporting

The AquaVision Intelligence portal will provide users with a bespoke display determined by their role and credentials with access privileges differentiated between un-authenticated (public) and authenticated users.

Members of the public who use the internet-facing portal will be presented with a landing page leading to an overview map showing the distribution and status of the monitoring stations.

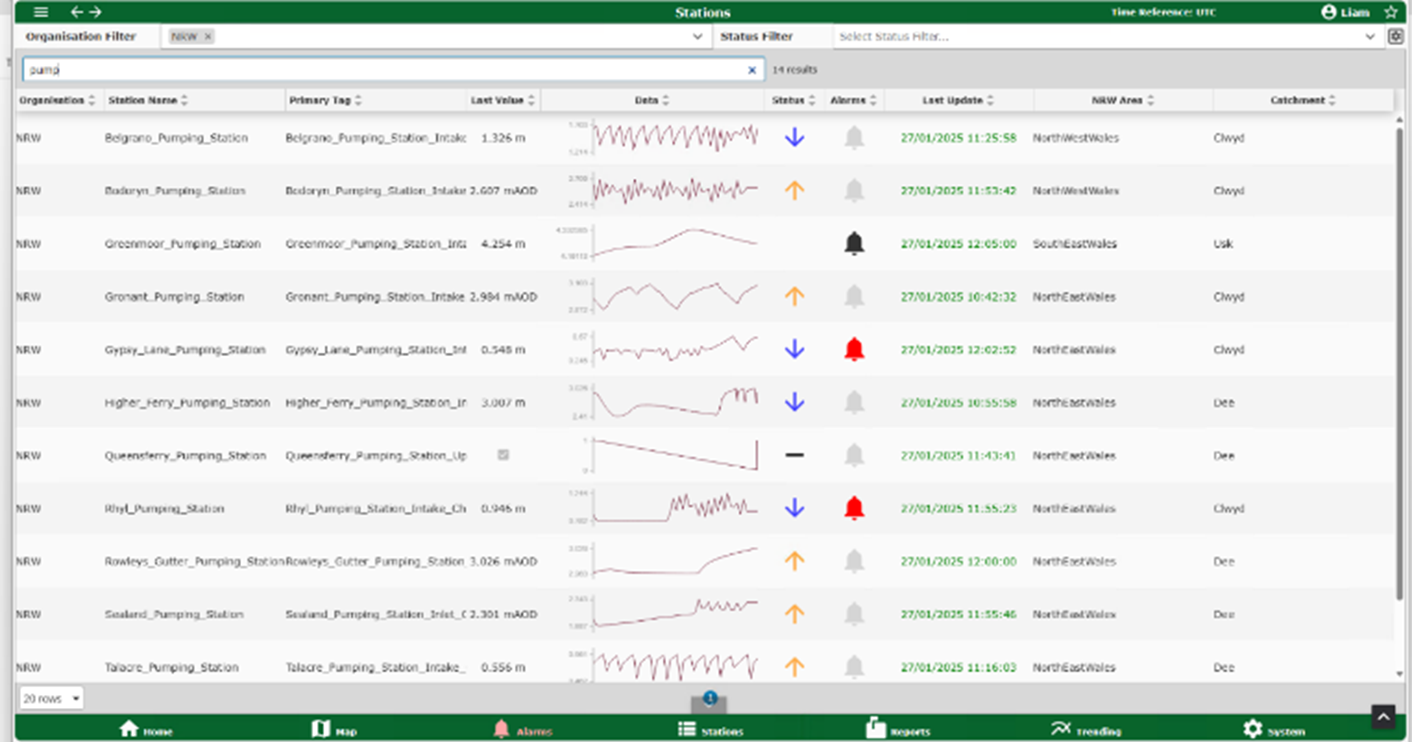

Site summary for water quality monitoring - AquaVision Intelligence

Navigation

Sidebar menus provide navigation to key system areas including overview map, trends, reports, alarms etc.

Navigation will be intuitive allowing users click on the site-specific icon to access the more detailed data such as recent trends, events and any contextual messages posted by the water utility relating to the site or an incident.

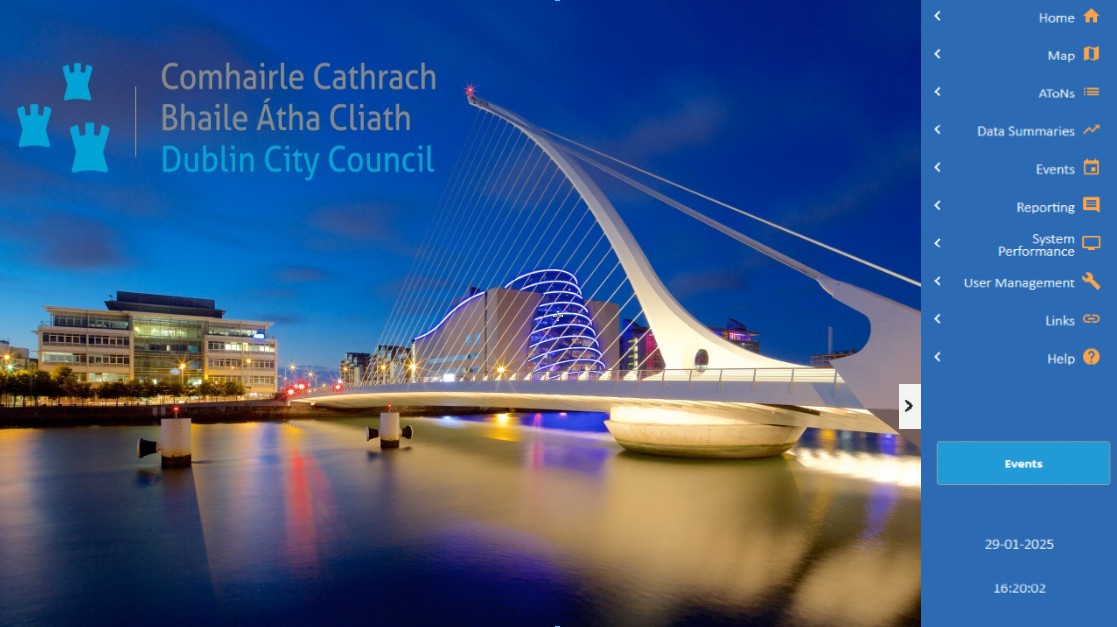

SCADA water quality monitoring portal - AquaVision Intelligence
Map view of water quality monitoring - AquaVision Intelligence

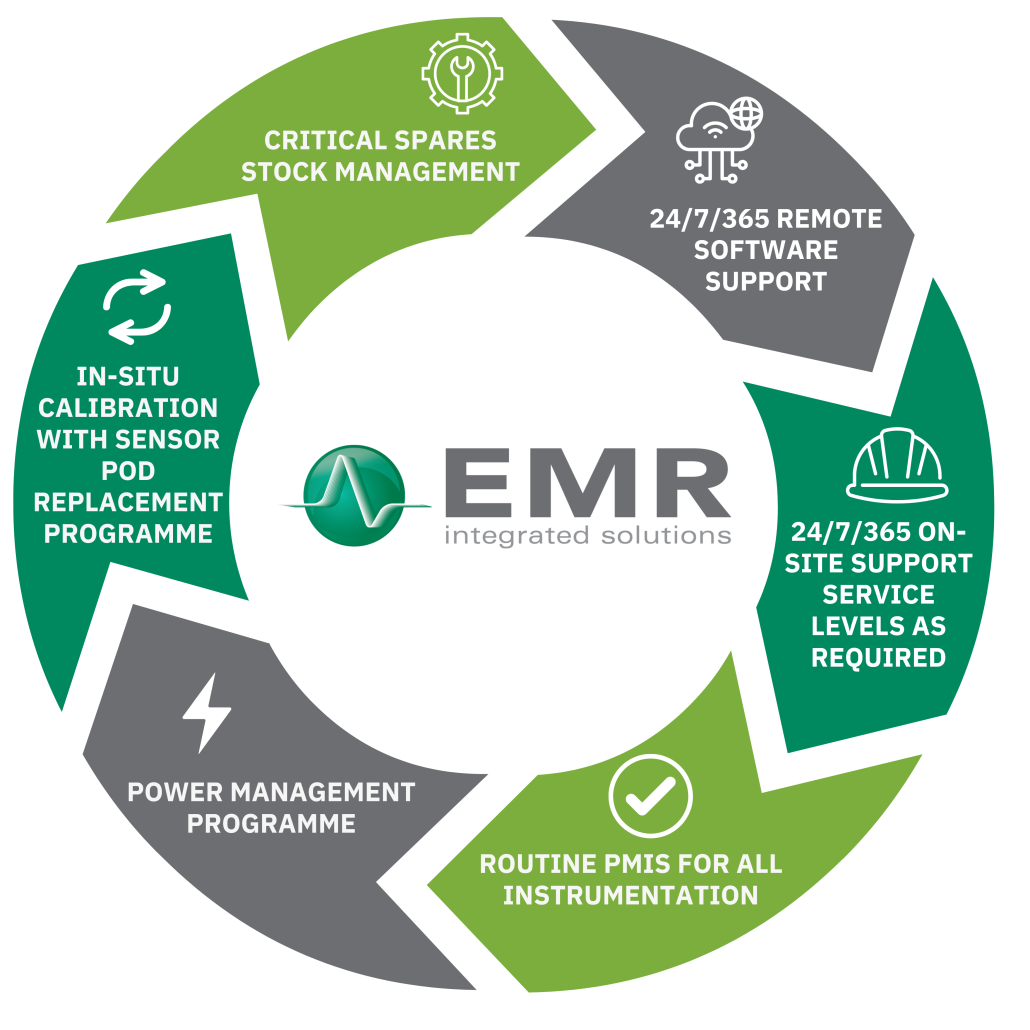

Flexible Services

Water quality monitoring services

Modular Design for Modern Utilities

Our services are modular in design and clients can choose from:

  • Consultation
  • Design
  • Site Survey/Selection/Audits
  • Installation & Commissioning
  • Maintenance
  • Calibration Management
  • Hosted Network Monitoring
  • Multi-year Service Level Agreements
VIEW SERVICE SHEET
